Round Roller Assembly
|
|
Part Number: FF-largeroundrollerassy
* denotes required field
What size roller do you need*
You must select an option for 'What size roller do you need'.
What size Clevis Pin do you need?*
You must select an option for 'What size Clevis Pin do you need?'.
How soon do you need your order?*
You must select an option for 'How soon do you need your order?'.
This Item is Returnable, Less Shipping. Do you Agree?*
* Whole number only
|

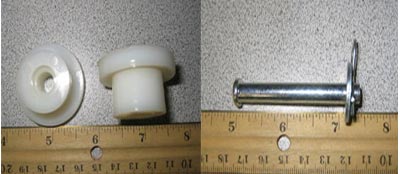

Round Roller Assembly - Sold Each The color of this Roller varies. It can be white, yellowish, or black. This item includes 1 Roller, 1 Pin, 1 Washer, and 1 Clip. You need to select the size of the roller. The Clevis Pin is 2 5/16" useable length. (Two Rollers are shown so you can see the roller from a different view) | Round Futon Roller Assembly (Each) - Also known as Plastic Futon Glides; Futon Rollers or Futon Glides. These attach to the sides of the Back part of the frame normally with a Bolt, washer and nut, or with a Clevis Pin, with a washer and a clip, which slips through the center of the roller. The end of the Roller is recessed to fit the head of the Bolt. When assembling the frame, the Rollers slide into a groove in the arms and allow it to convert from a sofa to a bed and back. | Approximate Dimensions | Type 1 Smaller Roller - < 7/8" Tall - Center Hole - < 5/16, Recessed Hole < 29/64, Depth of Recessed Hole - 5/32, (Large Diameter < 1 1/2" - Large Diameter Ring Thickness < 11/32") - (Small Diameter < 15/16" - Small Diameter Depth < 17/32") | Type 2 Larger Roller - Approximately 1 1/8" Tall - (Large Diameter 1 1/2" - Thickness 1/2") - (Small Diameter 1" - Thickness 5/8") |
|
|
|
|
|
